【導讀】智能手機帶來了電子產(chǎn)品世界的一場革命，它實用便捷，功能日趨強大，但是電池續(xù)航能力不足卻讓人頭疼不已。在無法提高電池容量的前提下，無線充電給這個問題指出了一個方向，這里我們看一下順絡提供的無線充電線圈設(shè)計。

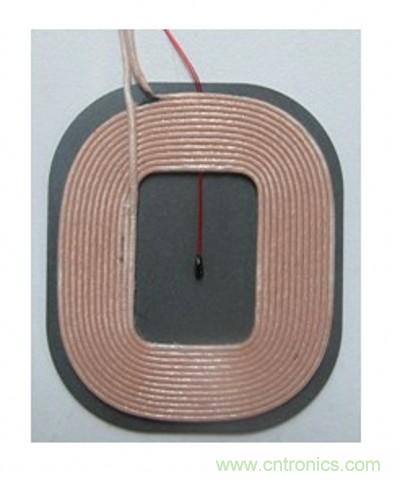

Wireless Charging TX- Coil
The size of new Tx - coil assembly（L*W*H） is 57*48.5*2.9mm for the function of wireless charging, which are made of Ni-Zn ferrite shielding materials and Litz wire winding. It is ideal for wireless charging transmitter coil assembly and increase the charging efficiency.
Background
Inductive Coupling: good coupling between two coils, a transmitter coil and a receiver coil. An alternating current in the transmitter coil generates a magnetic field which induces a voltage in the receiver coil. This voltage can be used to power a mobile device or charge a battery.
Features
Wireless charging transmitter coil assembly (Tx - coil)
Litz wire winding
Shield by Ni-Zn ferrite material
Compliance with Qi standard of WPC(Wireless Power Consortium)
Applications
Gaming devices
Mobile Phones
Battery or battery Chargers
Cameras
MP3 /PMP
MID`s
Hand Held Devices
